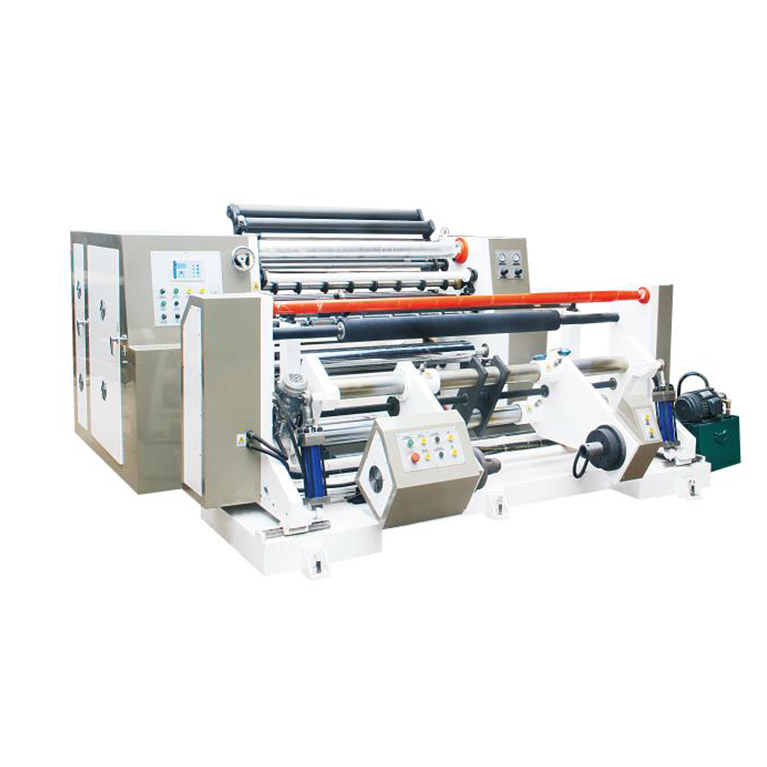

1. The machine adopts two pcs motor synchronous control automatic tension,
central surface reeling.
2. The machine use frequency converter adjusts speed motor, it can keep a stable
operation when speedup.
3. It has the functions of auto meter count, automatic alarm; The rewinding adopts
A、B air shaft structures, it will operation neatly and assemble conveniently.
4. The unwinding adopts an ultrasonic correcting edge position.
5.Waste of edge material through a circular slitting knife to auto discharge.
6.Manual shaftless loading structure feeding system online.
主要技術(shù)參數(shù) Main Technical Parameters:
| 型號 | Model | SX-FQJ-1300D | SX-FQJ-1600D | | | |
| 放卷最大寬度 | Max Width of unwinding | 1300mm | 1600mm | | | |
| 放卷最大直徑 | Max diameter of unwinding | Φ1400mm | Φ1400mm | | | |
| 分切最小寬度 | Max Width of slitting | 30mm | 30mm | | | |
| 收卷最大直徑 | Max diameter of rewinding | Φ600mm | Φ600mm | | | |
| 分切速度 | Speed of slitting | 30-350m/min | 30-350m/min | | | |
| 整機功率 | Total Power | 10.5kw | 12.5kw | | | |
| 適用電源 | Power supply | 380V/50hz | 380V/50hz | | | |
| 機器重量 | Weight of machine | 3500kg | 3700kg | | | |
| 主機外形尺寸 | Overall dimension(L×W×H ） | 2050×3000×1720mm | 2050×3300×1720mm | | | |
| 卸料塔外形尺寸 | Stripper tower overall dimension(W×H) | 1530×1250mm | 1530×1250mm |
